Industrial products

Ship to Stock in: Warehouse

Industrial routers

★ ★ ★ ★ ★ 4.9 1260 Reviews

Wholesale Price

Model: TL-R483G industrial grade

Order No: TL-R483G industrial grade

SKU: 10000151887201

Category: Security gateway

Brand: TP-LINK

Size: 137.00mm, 100.00mm, 38.00mm

Weight: 0.00kg

Product Selection Engineer: Huankanheng

Leading

Customer Service Guarantee

100% secure payment

Quality Guarantee

No Reason Returns

Technical Specifications

Protocol Standards	IEEE 802.3,802.3i,802.3u,802.3x,802.3z
Port morphology	5 x 10/100/1000M RJ45 ports

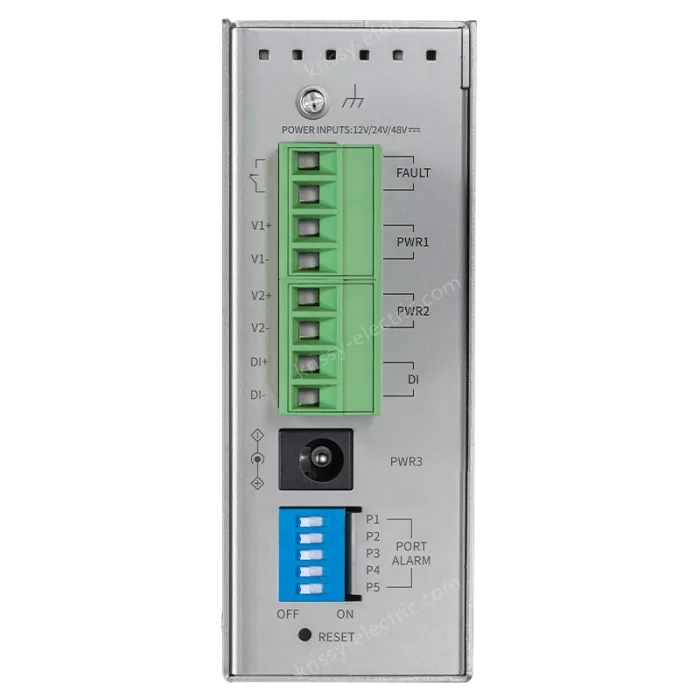

Light	5 RJ45 status indicators Link/ACT PWR1，PWR2，PWR3 SYS/FAULIT
Power input	DC Input Voltage 12/24/48 VDC (9.6~ 60 VDC) Input current 0.2A@24VDC Support reverse polarity protection
DIP	Port interrupt alarms are supported
Structure	IP30 degree of protection Product size: 137mm100mm38mm Rail/wall mounting
Temperature	Operating temperature -40°C — 75°C Storage temperature -40°C — 85°C
Humidity	Operating humidity 10%RH — 90%RH, non-condensing Storage humidity 5%RH — 90%RH, non-condensing
Certification standards _EMS	IEC/EN 61000-4-2,Level 4 IEC/EN 61000-4-3,Level 4 IEC/EN 61000-4-4,Level 4 IEC/EN 61000-4-5,Level 3 IEC/EN 61000-4-6,Level 3 IEC/EN 61000-4-8,Level 5 IEC/EN 61000-4-9,Level 5 IEC/EN 61000-4-10,Level 5

Software Features

Network protocols	TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS
Basic settings	Interface settings DHCP server
AP management	AP settings, which can manage up to 50 APs Wi-Fi settings Wireless client status
Access mode	Dynamic IP, static IP, PPPoE, L2TP, and PPTP
Transmission control	NAPT One-to-one NAT mapping Virtual servers FTP ALG、H.323 ALG、SIP ALG、PPTP ALG IP bandwidth control, connection control, traffic/connection monitoring Intelligent Equalization, Special Application Routing, ISP Routing Static routes, policy-based routes, and system route lists
ARP protection	ARP scanning, ARP list, and free GARP are supported IP MAC binding is supported
Attack protection	Defend against a variety of common attacks, such as DoS, scanning, and suspicious packets
Access control	MAC addresses can be filtered into blacklists and whitelists Access Control Lists
Behavior control	Social software, video software, music software, shopping and leisure software, news software, P2P software, financial software, online games, app stores, basic applications, etc QQ blacklist and whitelist URL filtering Web security (prohibiting page submissions, filtering specific file extension types) Apply a signature database upgrade
VPN	IPsec VPN PPTP/L2TP VPN
Certification management	Web authentication supports local authentication, Radius authentication, and one-click Internet access to meet various authentication requirements The authentication page can be customized, and text and image advertisements can be easily pushed to carry out marketing promotion Authentication-free policy
System services	Dynamic DNS (Peanut Shell, Kemai, 3322) UPnP services DNS proxy
Manage maintenance	Chinese web management, remote management Configure backup and import configurations System software upgrades Interface traffic statistics and IP traffic statistics Ping and tracert diagnostic tools System logs
Cloud management	TP-LINK commercial network cloud platform TP-LINK local NMS management platform
