KPN5200-030

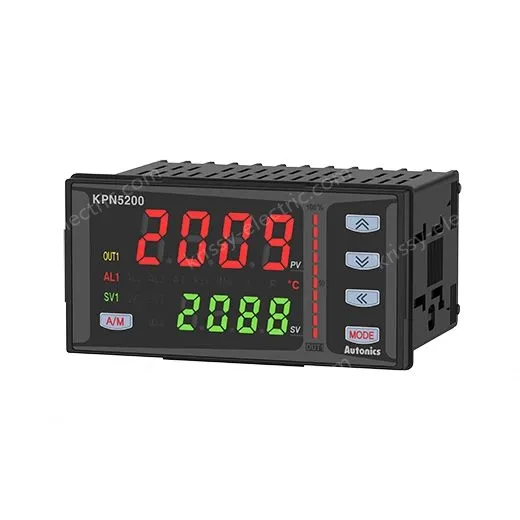

The KPN series high performance digital process controllers offer high-speed sampling speed of 50 ms and high display accuracy of ±0.3%. The large, high luminance LED dual display provides clear PV and SV readings with bar graph display of control output value (MV). The series also feature high performance control with independent heating/cooling control and automatic/manual control functions.
KPN5200-030
Power supply : 100-240VAC~ 50/60Hz
Input type_RTD : JPt100Ω, DPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω, Nikel120Ω (6 types)
Input type_TC : K, J, E, T, L, N, U, R, S, B, C, G, PLII (13 types)
Input type_Analog : ㆍVoltage: 0-100mV, 0-5 V, 1-5 V, 0-10 V (4 types) ㆍCurrent: 0-20mA, 4-20mA (2 types)
Control method : ON/OFF, P, PI, PD, PID
Protection structure : IP65(front panel)
Control output : OUT1: Relay output, OUT2: Selectable Current output, SSR drive output
Environment_Ambient temperature : -10 to 50℃, storage: -20 to 60℃
Input type_RTD : JPt100Ω, DPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω, Nikel120Ω (6 types)
Input type_TC : K, J, E, T, L, N, U, R, S, B, C, G, PLII (13 types)
Input type_Analog : ㆍVoltage: 0-100mV, 0-5 V, 1-5 V, 0-10 V (4 types) ㆍCurrent: 0-20mA, 4-20mA (2 types)
Control method : ON/OFF, P, PI, PD, PID
Protection structure : IP65(front panel)
Control output : OUT1: Relay output, OUT2: Selectable Current output, SSR drive output
Environment_Ambient temperature : -10 to 50℃, storage: -20 to 60℃
