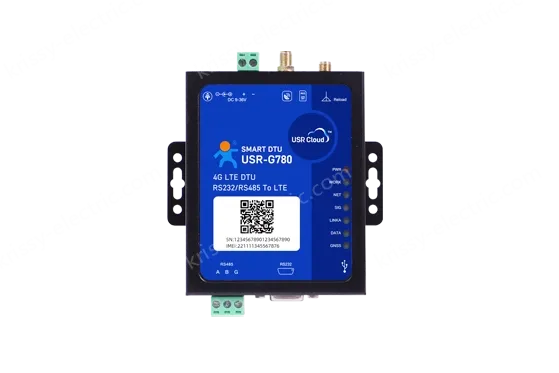

The USR-G780s is a new high-reliability 4G positioning DTU for the IoT. As the second-generation Smart DTU, while maintaining the first-generation hardware interface and form factor, it continues the industrial quality design, improves the protection level for harsh environments, and expands the applicability in more fields. The product has the characteristics of high speed and low latency, and supports 4G Cat-1 network access of the three major operators. The product has a built-in independent hardware watchdog, which reaches the high protection level of EMC4; Wide voltage power supply, RS232 and RS485 two standard interfaces, stronger applicability; 8 years of traffic will be delivered immediately after leaving the factory, 100M/month, and the application can be networked after powering on. With GNSS global positioning system, it can be connected to manned cloud, Qianxun cloud and private cloud platform; For the first time, it is equipped with a power-off alarm function, which can be combined with the manned cloud to achieve remote and efficient operation and maintenance, and there is no longer an ineffective business trip to the site.
Parameters | Description | |
Basic parameters | Network standard | Support China Mobile, China Unicom, and China Telecom 4GLTE Cat-1 |
power supply | The power supply range is 9V~36V, and the recommended value is 12V/1A | |
Operating current | average current 81mA@12V; Peak current 234mA@12V | |
Status indicator | POW、WORK、NET、SIG、LINA、DATA、GNSS | |
SIM/USIM card | Card 1: 3V/1.8V SIM card slot, 2FF specification (traditional large card) Card 2: Built-in telecom patch eSIM card, 8 years of traffic will be sent out of the factory, 100M/month | |
USB interface | Slave, MicroUSB port, USB 2.0 High speed, | |
UART interface | Support RS232 and RS485, terminal interface, baud rate 1200~230400 (bps) | |
Antenna interface | 1 4G interface and 1 GPS interface, both of which are SMA outer spiral inner holes | |
Dimensions | Dimensions (mm) | 124.2×105.0×28.0 (including terminals and hanging ears) |
Weight (g) | <210g | |
Temperature range | Operating temperature | -25℃~ +75℃ |
Storage temperature | -40℃~ +90℃ | |
Humidity range | Operating humidity | 5%~95% (no condensation) |
Technical Specifications | TDD-LTE | 3GPP Release 13 CAT1 is 7.5 Mbps downlink and 1 Mbps uplink |
FDD-LTE | 3GPP Release 13 CAT1 is 10 Mbps downlink and 5 Mbps uplink | |
Frequency bands | TDD-LTE | Band 38/39/40/41 |
FDD-LTE | Band 1/3/5/8 | |
Software Features | Working mode | Transparent transmission mode, HTTPD mode, SMS transparent transmission mode, and MQTT mode |
Network protocols | TCP/UDP/DNS/FTP/HTTP/MQTT | |
SSl/TLS encryption | TCPC/HTTPS/MQTTS encryption is supported, and two-way certificate verification is optional | |
Number of sockets | 4-way, host 4-way backup server setup | |
User configuration | Upper computer configuration tool, serial AT command, network AT command, SMS AT command | |
GNSS global positioning | It supports connecting to manned clouds, private clouds, and Qianxun clouds | |
Featured Functions: | Power-off alarm | When the power supply is disconnected, the power outage message is actively sent to the manned cloud for pop-up warning |
Heartbeat packets | Support custom heartbeat packets/SN heartbeat packets/ICCID heartbeat packets/IMEI heartbeat packets/LBS | |
Enrollment package mechanism | Custom registration packages, SN registration packages, ICCID registration packages, and IMEI registration packages are supported | |
Other features | Socket distribution, FTP other upgrades, FOTA upgrades, NTP timing functions | |
