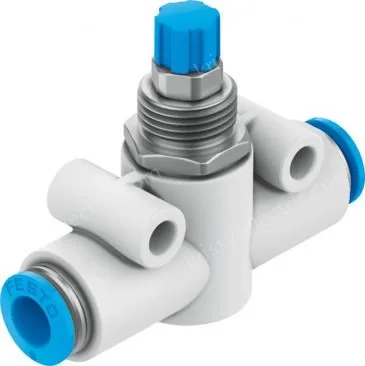

Valve function
One-way throttling function
P-port connection, port 1
QS-6
Air connection, port 2
QS-6
Adjusting elements
Knurled screws
Installation:
Panel mounting
With through-holes
With attachments
Either:
Standard nominal flow in the flow control direction
245 l/min
Standard nominal traffic in the blockade direction
430 l/min
Work pressure
0.2 bar ... 10 bar
Ambient temperature
-10 °C ... 60 °C
Housing material
Reinforced polyamide
Explosion proof
The information in the certificate must be followed!
Zone 1 (ATEX)
Zone 2 (ATEX)
Zone 21 (ATEX)
Zone 22 (ATEX)
Installation location
Optional
symbol
00991453
Working medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
Description of the working and pilot media
Can be operated with lubricating medium (must be lubricated all the time thereafter)
Paint wetting defective substance (PWIS) compliance
VDMA24364-B1/B2-L
Medium temperature
-10 °C ... 60 °C
Product weight
22 g
Material Description:
RoHS compliant
Seal material
NBR
Release ring material
POM
Knurled head material
Reinforced polyamide
Adjust the screw material
High-alloy steel
