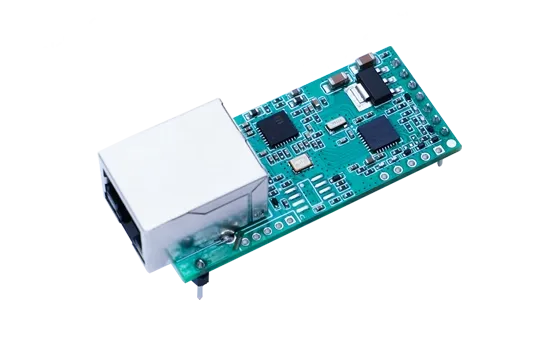

USR-TCP232-T2 is a pin Ethernet module, which realizes the bidirectional transparent transmission from UART to Ethernet. Controllable cost; With 1 Ethernet port, 10/100Mbps speed; Supports custom registration and heartbeat packet mechanisms. Support web page, AT command, serial port, network configuration; Supports timeout restart, automatic IP address acquisition by DHCP, DNS domain name resolution, virtual serial port, and remote firmware upgrade.
Serial to ethernet converter modules USR-TCP232-T2 can transmit data transparently between TCP/IP and TTL, and it can also be applied in RS232/ RS485 by level shift circuit.
Model | USR-TCP232-T2 | USR-TCP232-S2 |
Processor | ARM Cortex-M0, 48MHz | |
Power Supply | ||
Power Input | VCC: 3.0~3.6V VDD: 5.0~7.0V | DC 3.0~3.6V |
Working Current | 170mA@5.0V / 170mA@3.3V | 150mA@3.3V |
Ethernet Port | ||
Ethernet Port | 1 x RJ45, 10/100Mbps, auto MDI/MDIX | PHY signal |
Serial Port | ||
Serial Port | 1 x TTL, 3.3V level | |
Baud Rate | 600~460.8 Kbps | |
Data Bits | 5,6,7,8 | |
Stop Bit | 1,2 | |
Parity Bit | None, Odd, Even, Mark, Space | |
Serial Packeting | Packeting Time: Four-byte sending time Packeting Length: 400 Bytes | |
Serial Packet Cache | Receive: 800 Bytes | |
Physical Parameters | ||
Dimension(L*W*H) | 50.5*22.6*15.0(mm) | 33.0*20.3*2.0(mm) |
Operating Temperature | -25~75℃ | |
Storage Temperature | -40~105℃ | |
Operating Humility | 5%~95% RH(non-condensing) | |
Storage Humility | 5%~95% RH(non-condensing) | |
Software | ||
Network Protocol | IP, TCP/UDP, DHCP, RCMP, HTTP, IPv4, DNS | |
IP Mode | DHCP, STATIC IP | |
DNS Service | √ | |
Config Method | AT Command, Built-in webpage, Config Software, Config Protocol | |
Work Mode | TCP Server/TCP Client/UDP Server /UDP Client/Httpd Client | |
Modbus Gateway | Modbus RTU to Modbus TCP, Multi-host Modbus Polling | |
User-Defined Webpage | √ | |
TCP Server | Maximum: 16 clients Default: 4 clients | |
Network Packet Cache | Send: 6K Bytes Receive: 4K Bytes | |
Additional Features | RFC2217 Similar, Heartbeat Packet, Registration Packet, Index, No Data Restart | |
Others | ||
Certificate | CE, FCC, RoHS | |
Warranty | 1 year | |
