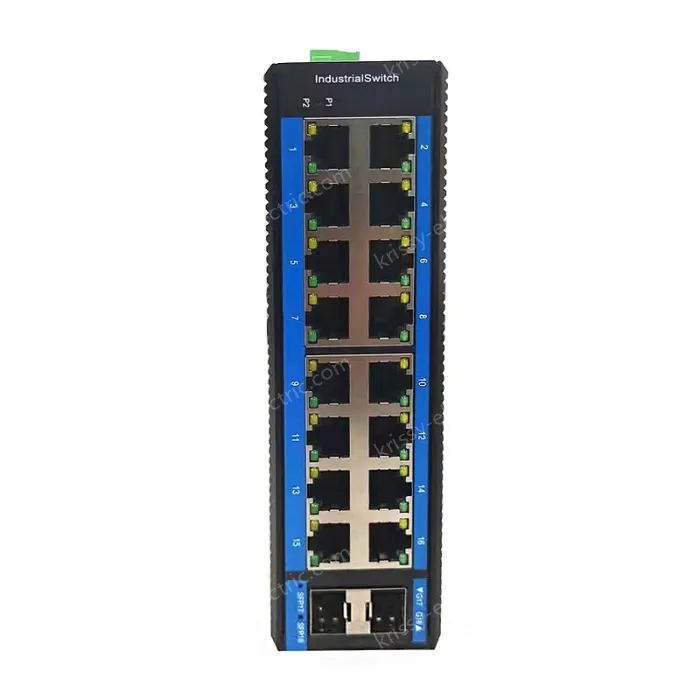

UT-N60N216G-SFP switch is an industrial Ethernet switch with 16 Gigabit electrical ports and 2 Gigabit optical ports, supporting 16 10Base-T/100Base-T/1000Base-TX electrical ports and 2 1000Base-X ports. The UT-N60N216G-SFP switch has a operating temperature range of -40 ~ 80°C, and is extremely rugged for harsh environments and can be easily placed in compact control boxes. The rail mounting features, wide temperature operation, IP40 rated housing and LED indicators make the UT-N60N216G-SFP a plug-and-play industrial grade device that provides a reliable and convenient solution for networking Ethernet devices.
- Adopt high quality optoelectronic integrated modules to provide good optical and electrical characteristics
- Ensure reliable data transmission and long lifecycle
- Support full-duplex or half-duplex mode with auto-negotiation capability
- Network port supports fully automatic cross-identification
- Storage and forwarding mechanism is built-in and supports multiple protocols
- Compliant with industrial-grade operation standards, with an average trouble-free operation of more than 300,000 hours
- Working power supply: DC 12-52V with reverse connection protection
- Lightning surge protection (power supply): 5000A (8/20μs)
Item | UT-N60N216G-SFP |
Product Name | Gigabit 18-port Industrial Ethernet Switch |
Hardware Specification | |
Interface | |
Interface description | 16 gigabit electrical ports + 2 gigabit optical ports |
RJ45 port | 10/100/1000BaseT(X) auto-detection,full/half duplex MDI/MDI-X adaptive |
Fiber optic port | 1000BaseFX port (SFP interface) |
LED Indicator Light | |
LED indicator light | Power indicator: PWR Interface indicator: Electric port (Link) |
Switching Performance | |
Forwarding rate | 42Mpps |
Transmission mode | Store-and-Forward |
MAC address | 8K |
Buffer size | 4.1Mbit |
Backplane bandwidth | 56G |
Switching latency | <10μs |
Power Requirement | |
Input voltage | DC15 ~ 52V Dual power redundancy backup |
Access terminal | Phoenix terminal |
Power consumption | <10W |
| Support dual power redundancy |
| Support built-in overcurrent 4.0A protection |
| Support reverse connection protection |
Operating Environment | |
Operating temperature | -40 ~ 80°C |
Operating humidity | 5 ~ 95% |
Storage temperature | -40 ~ 85°C |
Storage humidity | 5 ~ 95% (no condensing) |
Mechanical Characteristic | |
Housing | IP40 protection level, metal housing |
Dimension | 179 x 134 x 46 mm (W x D x H) |
Weight | 650g |
Installation method | DIN rail/ wall-mounted |
Ethernet Standard | |
Standard | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX/FX; IEEE802.3ab1000Base-T; IEEE802.3z1000Base-X; IEEE802.3x; |
Industry Standard | EMI : FCC Part 15 Subpart B Class A, EN 55022 Class A EMS : IEC(EN)61000-4-2(ESD) : ±8kV contact discharge, ±12kV air discharge IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT) : Power line : ±2kV ; Data line : ±1kV IEC(EN)61000-4-5(Surge) : Power line : ±2kV CM/±1kV DM ; Data line : ±2kV IEC(EN)61000-4-6(RF conductivity) : 3V(10kHz~150kHz),10V(150kHz~80MHz) IEC(EN)61000-4-16(Common mode conduction) : 30V cont. 300V,1s IEC(EN )61000-4-8 Shock : IEC 60068-2-27 Freefall : IEC 60068-2-32 Vibration : IEC 60068-2-6 |
