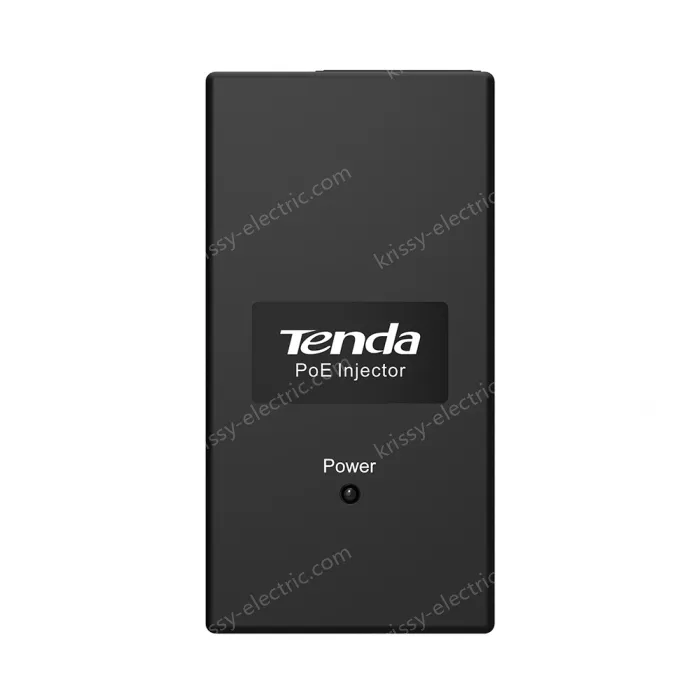

10/100Mbps PoE Injector
PoE injector PoE15F can realize the synchronous transmission of network data and power through an Ethernet cable (Cat.5 or better). The output power of each port is as high as 15W, which can be exported as PoE equipment (via RJ45 port). You can connect to ieee802.3af's PD, such as wireless AP, IP camera, IP phone, etc. In a sense, reducing installation costs and improving network performance is a good choice.
Delivers power and data through one Ethemet cable for easy network extension
Compatible with lEEE 802 3aflat compliant powered devices
PoE Port Delivers power up to 100 meters
Plug and Play, no configuration required
Supply Over-voltage, ower-cument and overiload protection mechanism
10/100Mbps PoE Injector
| Network standards | IEEE802.3、IEEE802.3u |
| LED Indicator | Link/Act , PoE Status |
| Interfaces | 1*10/100 Base-TX Ethernet ports(Data/PoE) 1*10/100 Base-TX Ethernet ports(Data) |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Dimension | 84.5mm*44mm*29.8 mm |
| Level of protection | ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding mode | Store-and-forward |
| Transmission Rate | 100Mbps |
| PoE budget | Single port: AF: 15.4W Whole device: 15W |
| Power consumption | 15W |
| Input voltage | 100－240V AC 50/60Hz 48V/0.3A DC（Power Adapter Output） |
| Mounting | Desktop mounting: support |
| Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification | FCC、CE、RoHS |
