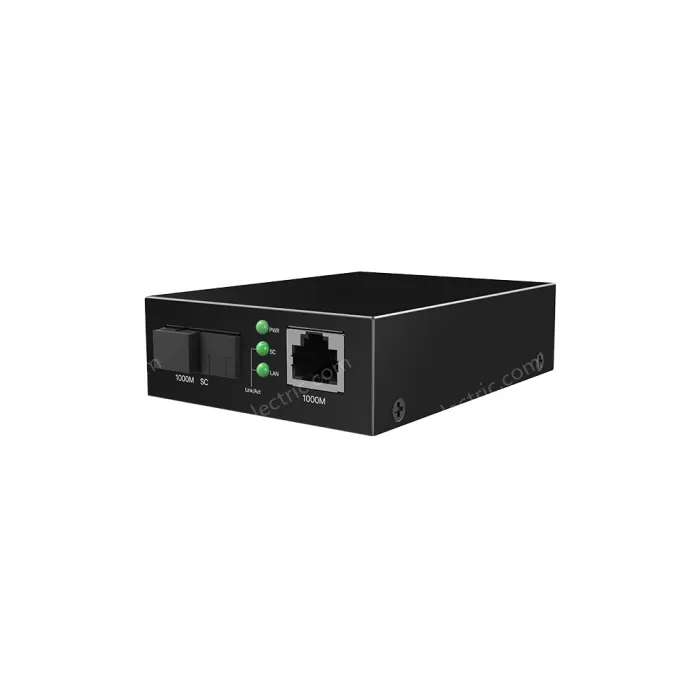

TFC300A Gigabit single-mode single-fiber fiber transceiver
TFC300A is a gigabit single-mode single-fiber fiber transceiver that converts electrical port signals to optical port signals, and can extend long-distance network signals through optical fibers. TFC300A/B adopts WDM technology, SC optical fiber interface transmits signals through single-mode single fiber, sending wavelength 1550nm (1310nm), receiving wavelength 1310nm (1550nm), transmission distance up to 3km, which can meet the long-distance lossless 1000Mbps wired network cable transmission of hotels, universities, enterprises, security monitoring, etc.
TFC300A Gigabit single-mode single-fiber fiber transceiver
| Number of ports | 1 x 1000Mbps RJ45 port and 1 x 1000Mbps SC fiber port |
| Transmission distance | 3km |
| Power supply | Input: 220VAC, 50/60Hz Output: 5V DC, 0.6A |
| Dimensions | 95mm*72mm*26mm（L*W*H） |
| Working environment | Operating temperature: -20°C~70°C working humidity (10~90)%RH, non-condensing |
| Storage environment | Storage temperature: -40°C~70°C storage humidity (10~90)%RH, non-condensing |
